Mana Series Tenor
'Ukulele
The Mana series tenor
'ukulele was designed to
provide more playable
frets and give easier
access to those frets. The
instrument comes
standard with an 18.65"
scale and 22 frets or
18.011" scale and 21 frets.
If needed, it can also be
made with up to a 24 fret
configuration. The below
specifications are all
preliminary.
Preliminary Specifications
Features:
  • Asymmetrical body for easy
    fret access
  • Soundhole location allows
    more functioning soundboard
  • Low G,  g-C-E-A tuning
  • 14 frets to body
Dimensions:
  • 12-7/8" body length
  • 9-1/8" width maximum
  • 18.654" playing scale
  • 28" overall length
  • 3" maximum depth
  • 2-3/4" minimum depth

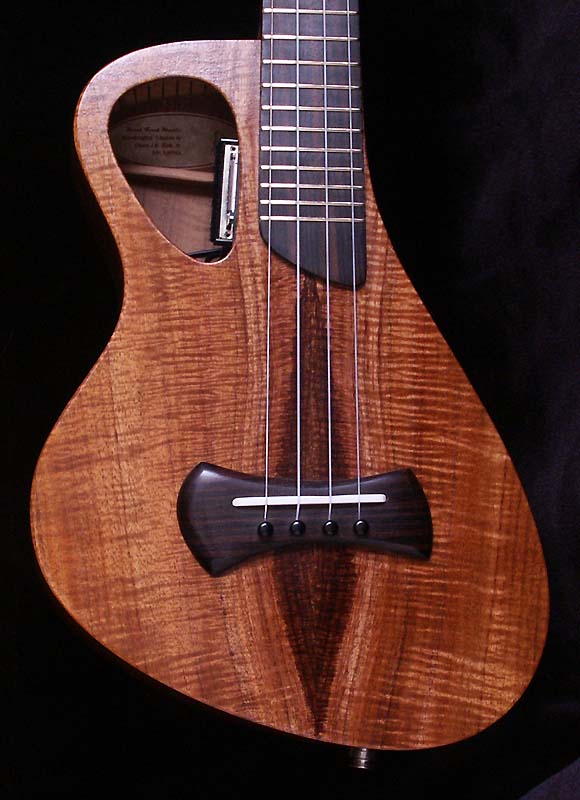

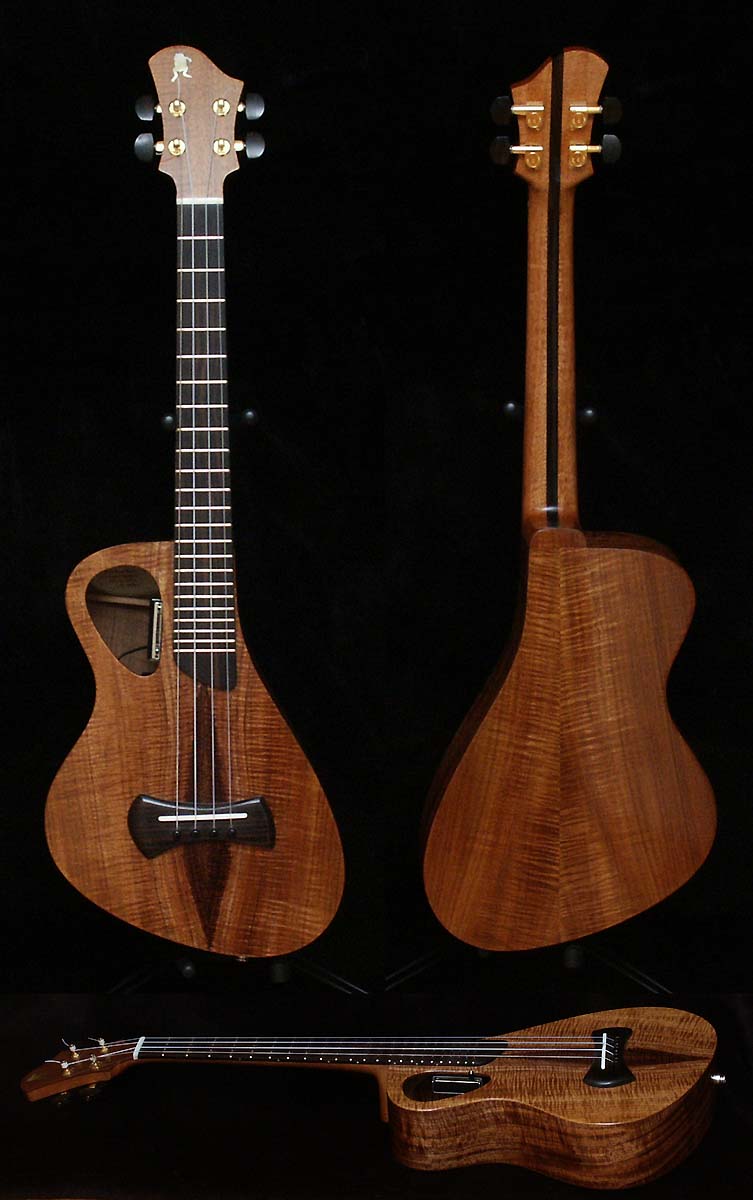

The instrument to the below is the
first in the Mana line. Upgrades
over the standard model on this
instrument include:
  • Schaller gold plated mini
    tuners with ebony knobs
  • AAA curly koa
  • 16" radius fingerboard

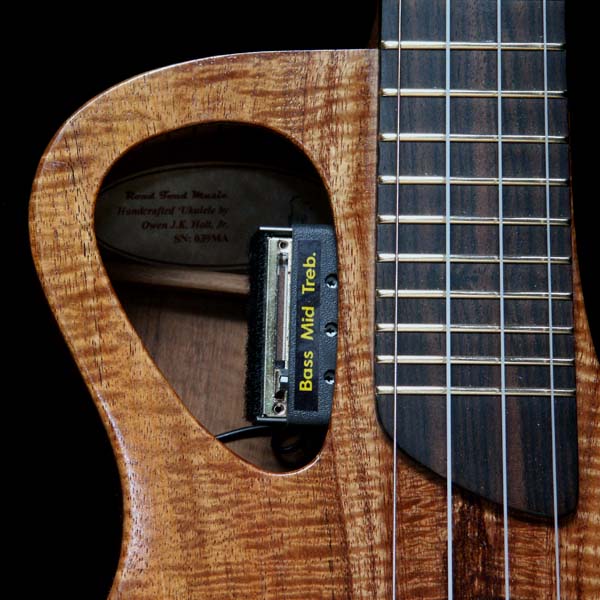

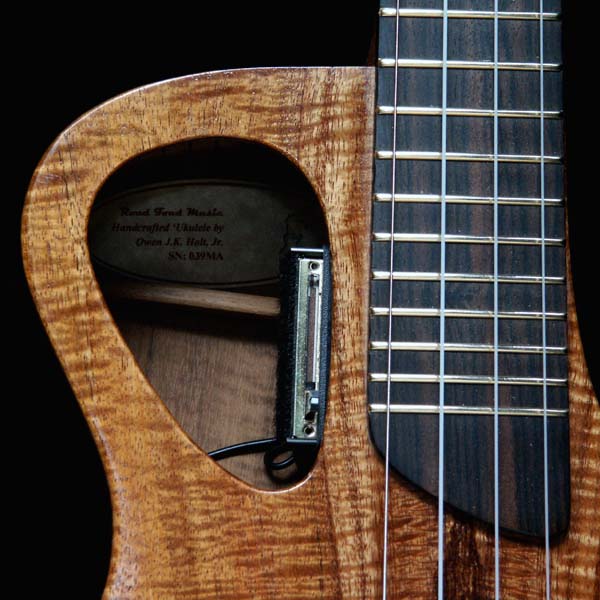

  • K&K Sound Ultrapure
    Western pickup system.
  • 23 frets
Standard features:
  • Wood from list A (see pricelist)
  • Mahogany neck
  • Hardwood headplate
  • Gotoh chrome mini tuner
  • 21 or 22 frets on 18.011" or 18.654" scale
  • Tru-oil finish
  • Macassar ebony fretboard with
    matching bridge
  • Plastic bridge pins
  • Bone nut & saddle
  • Shell fretmarkers
  • g-C-E-A tuned with low G
  • Choice of Aquila Nylgut, Hilo or
    fluorocarbon strings
  • Road Toad inlay logo
  • Includes Lanikai or equivalent
    instrument case.
